Knowledge about brass fittings thread

April 24, 2018

Thread is the important part of brass fitting

It Provide mechanical support and seal

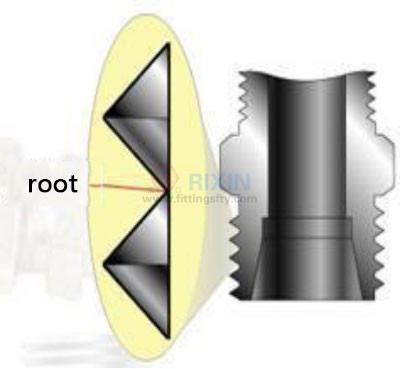

Every thread have some very import information:Crest ,Root,Flank Angle,Pitch,Outside diameter.

Pitch:The distance between the thread like Crest to Crest,Root to Root.

And pitch have different writing method:metric thread, inch thread.common fitting’s

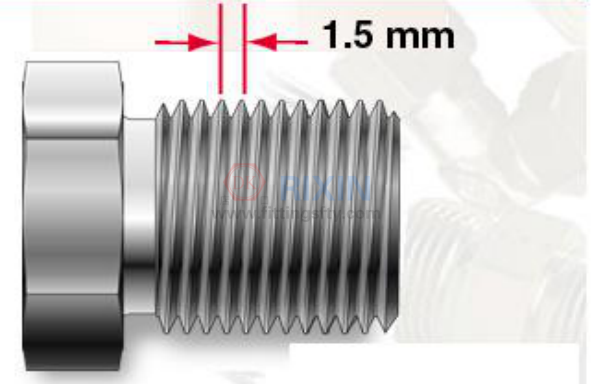

Metric thread pitch:1.0mm、1.5mm、2.0mm

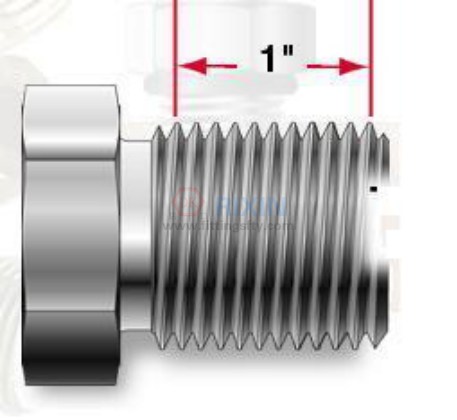

Common fitting’s inch thread pitch:11、14、18、20

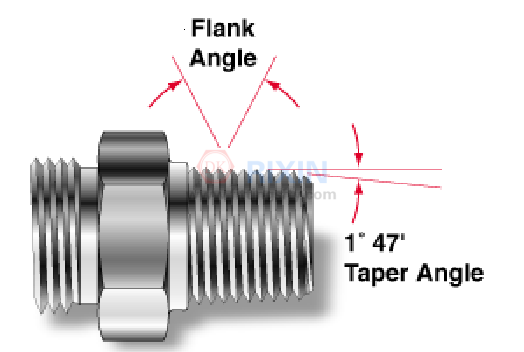

When the thread is Tapered thread. It also have taper angle.

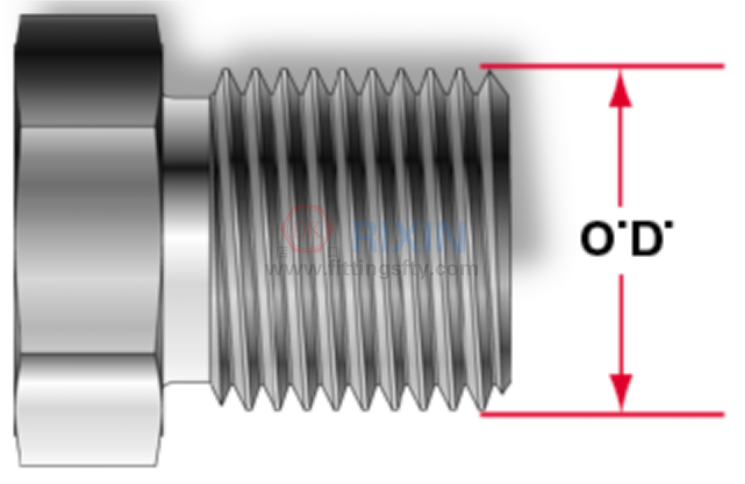

Outside diameter: outside diameter(crest-crest)
